Enterprise Data Simulator - Contact Center (WXCC)¶

Screenshots

To capture additional screenshots of the simulator UI, run the Playwright script: python3 docs/simulators/capture-simulator-screenshots.py

Overview¶

The WXCC Simulator provides a fully functional mock of the Cisco Webex Contact Center (WXCC) API within the NexusAI platform. It allows teams to develop, test, and demo the data-processing pipeline -- including task ingestion, recording retrieval, transcription, and analytics -- without requiring a live Webex CC tenant or OAuth credentials.

Key capabilities:

Creates realistic call tasks with randomized metadata (phone numbers, queues, agents, statuses)
Stores and streams call recordings from S3 (real audio files or synthetic fallback)
Exposes WXCC-compatible REST endpoints consumed by the existing nexus-ai stages
Managed entirely through the UI, CLI, or REST API

Architecture¶

Real Mode vs Simulator Mode¶

The platform uses a feature flag (WXCC_SIMULATOR_ENABLED) to decide which backend serves WXCC data. When the simulator is enabled, the WXCCGraphAPI client routes requests to the local simulator API instead of the real Webex CC endpoints.

flowchart TB
    subgraph realMode [Real Mode]
        App_R[Call Processing Stage]
        WXCC_R[WXCCGraphAPI Client]
        OAuth[Webex OAuth Provider]
        WebexAPI[Webex CC REST API\napi.wxcc-us1.cisco.com]

        App_R --> WXCC_R
        WXCC_R -->|OAuth Token| OAuth
        WXCC_R -->|GET /v1/tasks\nPOST /v1/captures/query| WebexAPI
    end

    subgraph simMode [Simulator Mode]
        App_S[Call Processing Stage]
        WXCC_S[WXCCGraphAPI Client]
        SimAPI[Simulator API\nlocalhost:8000/api/v1/simulator]
        SimService[WXCCSimulatorService]
        S3[(S3 Bucket\nwxcc-simulator)]

        App_S --> WXCC_S
        WXCC_S -->|Bearer sim-token| SimAPI
        SimAPI --> SimService
        SimService -->|data.json\nrecordings/*| S3
    end

Component Map¶

Component	Location	Role
WXCCSimulatorService	`nexus-backend/src/services/wxcc_simulator_service.py`	Core service: S3 storage, task/recording CRUD, seeding, caching
Simulator API	`nexus-backend/src/apis/wxcc_simulator_api.py`	FastAPI router exposing WXCC-compatible + admin endpoints
Simulator Processor	`nexus-backend/src/stages/wxcc-simulator/simulator_processor.py`	Stage processor that feeds simulator tasks into the pipeline
Simulator Stage	`nexus-backend/src/stages/wxcc-simulator/wxcc_simulator_stage.py`	Journey stage definition for WXCC simulator
Seed Script	`nexus-backend/scripts/wxcc-simulator/seed_simulator.py`	CLI tool to seed/reset the simulator
MCP Tool	`nexus-backend/src/tools/wxcc_simulator_tool.py`	AI tool for programmatic simulator interaction
UI Panel	`nexus-ui/src/components/wxcc-simulator/WXCCSimulatorPanel.tsx`	Main React component for the WXCC simulator tab
UI Service	`nexus-ui/src/services/wxccSimulatorService.ts`	Frontend API client

S3 Storage Layout¶

All simulator data lives under a single S3 bucket with the following prefix structure:

s3://{bucket}/{prefix}/
├── data.json                    # Task and recording metadata (JSON)
├── recordings/
│   ├── {uuid}.mp3               # Actual call recording files
│   ├── {uuid}.wav
│   └── ...
└── sample-recordings/
    ├── call-sample-01.mp3       # Source audio used during seeding
    ├── call-sample-02.wav
    └── ...

File	Purpose
`data.json`	Central metadata store containing all tasks and recording references
`recordings/`	Audio files associated with specific tasks (copied from samples during seeding)
`sample-recordings/`	Pool of source audio files that get randomly assigned to tasks during seeding

Data Sources and Population¶

How Data Gets Into the Simulator¶

The simulator is populated through seeding -- a process that generates mock task records and optionally associates audio recordings with each task.

flowchart LR
    subgraph sources [Audio Sources - Priority Order]
        Local["1. Local Files\nscripts/wxcc-simulator/recordings/"]
        S3Samples["2. S3 Sample Recordings\n{prefix}/sample-recordings/"]
        Synthetic["3. Synthetic WAV\n440Hz sine wave"]
    end

    subgraph seeding [Seed Process]
        SeedAPI["POST /api/v1/simulator/seed"]
        SeedService["WXCCSimulatorService.seed_data()"]
    end

    subgraph output [Output in S3]
        DataJSON["data.json\n(task + recording metadata)"]
        RecFiles["recordings/*.mp3\n(audio files)"]
    end

    Local --> SeedService
    S3Samples --> SeedService
    Synthetic --> SeedService
    SeedAPI --> SeedService
    SeedService --> DataJSON
    SeedService --> RecFiles

Recording Source Priority¶

When seeding tasks with recordings, the service selects audio files in this order:

Local recordings -- Files in nexus-backend/scripts/wxcc-simulator/recordings/ (MP3, WAV, M4A, OGG, FLAC). Best for local development where you have actual call recordings.
S3 sample recordings -- Files previously uploaded to s3://{bucket}/{prefix}/sample-recordings/. Used in Docker/Kubernetes environments where local files are unavailable. Cached via an LRU cache (max 20 files, 50 MB).
Synthetic audio -- As a last resort, a 440 Hz sine wave WAV file is generated programmatically. This produces valid audio but has no speech content.

Sample Task Data¶

Seeded tasks use randomized values from these pools:

Attribute	Sample Values
Origins	`+6591234567`, `+6598765432`, `+6581112222`, `+6589998888`, `+6577776666`, `+6566665555`
Destinations	`+6560001111`, `+6560002222`, `+6560003333`
Queues	Sales Queue, Technical Support, Billing Inquiries
Agents	John Smith (`agent-001`), Jane Doe (`agent-002`), Bob Wilson (`agent-003`)
Task Names	Inbound Sales Call, Technical Support Request, Billing Inquiry, Account Update, Service Complaint
Statuses	Completed (85%), Abandoned (10%), Transferred (5%)
Directions	Inbound, Outbound (equal probability)
Duration	60-600 seconds (1-10 minutes)

Using the Simulator (UI)¶

The WXCC Simulator is accessed via Operations > Simulators > WXCC Simulator tab.

Page Layout¶

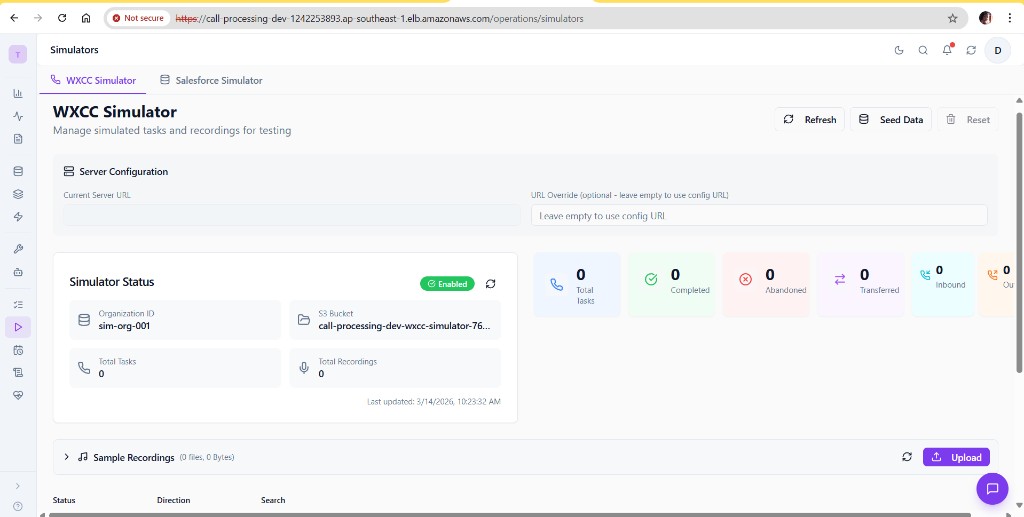

WXCC Simulator Overview

The WXCC Simulator page is organized into these sections:

Header -- Title, Refresh / Seed Data / Reset buttons
Server Configuration -- Shows the current server URL and an optional URL override field
Simulator Status -- Card displaying enabled state, Organization ID, S3 bucket, task/recording counts, last updated timestamp
Statistics -- Visual breakdown of task counts by status (Total, Completed, Abandoned, Transferred, Inbound, Outbound)
Sample Recordings -- Collapsible section for managing source audio files
Filter Controls -- Filter tasks by status, direction, and text search
Tasks Table -- Paginated table of all simulator tasks
Task Details Modal -- Click a task row to view full details and play recordings

Server Configuration¶

The Server Configuration section at the top of the page shows:

Current Server URL -- The backend URL the simulator is running on (read-only).
URL Override -- An optional field to point the simulator at a different backend URL. Leave empty to use the default from the application config.

Seeding Data¶

To populate the simulator with test data:

Click Seed Data in the header.
The Seed Data dialog appears with the following configuration options:
Configure the seed parameters:

Parameter	Range	Default	Description
Number of Tasks	1 - 100	10	How many mock call tasks to create
Days Back	0 - 30	7	Time span over which tasks are distributed
Include sample recordings	on/off	on	Attach audio files to tasks
Reset existing data first	on/off	off	Delete all existing data before seeding

Click Seed Data to begin. The process creates tasks, uploads recordings to S3, and updates data.json.

Quick Testing

For immediate testing with the nexus-ai pipeline, use a small number of tasks (2-5) with "Reset existing data first" enabled. The tasks will be created with recent timestamps.

Managing Sample Recordings¶

The Sample Recordings section (collapsible, visible at the bottom of the overview screenshot) lets you manage the pool of source audio files:

Upload -- Click Upload to add MP3, WAV, M4A, OGG, or FLAC files. These are stored in s3://{bucket}/{prefix}/sample-recordings/ and used during subsequent seeding.
List -- Shows all uploaded sample recordings with file name, size, and last modified date.
Delete -- Remove individual sample recordings from S3.

Note

Sample recordings are distinct from task recordings. Sample recordings are the source pool; during seeding, files are randomly selected from this pool and copied into the recordings/ prefix as task-specific recordings.

Browsing Tasks¶

The tasks table (below the Sample Recordings section) displays all simulator tasks with columns:

Column	Description
Status	Completed, Abandoned, or Transferred (with color-coded icons)
Direction	Inbound or Outbound
Task Name	Randomly assigned task type
Origin	Caller phone number
Destination	Called number
Queue	Queue the call was routed to
Agent	Agent who handled the call
Created	Timestamp when the task was created
Recordings	Number of recordings attached

Filtering:

Status filter -- Show only Completed, Abandoned, or Transferred tasks
Direction filter -- Show only Inbound or Outbound tasks
Search -- Free-text search across task name, origin, destination, queue, agent

Viewing Task Details¶

Click any task row to open the Task Details Modal, which shows:

Full task metadata (ID, name, channel type, timestamps)
Task attributes (status, direction, origin, destination, queue, agent)
Associated recordings with an inline audio player for playback

Resetting the Simulator¶

Click Reset in the header to delete all tasks and recordings from the simulator. A confirmation dialog appears before the action is executed. This:

Deletes all recording files from S3
Clears the data.json metadata
Resets task and recording counts to zero

Using the Simulator (CLI)¶

Seed Script¶

The seed script (nexus-backend/scripts/wxcc-simulator/seed_simulator.py) supports two modes:

API Mode (gateway running)¶

# Seed 10 tasks over 7 days with recordings (default)
python scripts/wxcc-simulator/seed_simulator.py --api http://localhost:8000

# Seed 50 tasks over 14 days
python scripts/wxcc-simulator/seed_simulator.py --api http://localhost:8000 --tasks 50 --days 14

# Reset and re-seed with current timestamps
python scripts/wxcc-simulator/seed_simulator.py --api http://localhost:8000 --reset --tasks 5 --now

# Check simulator status
python scripts/wxcc-simulator/seed_simulator.py --api http://localhost:8000 --status

Direct S3 Mode (no gateway required)¶

# Seed directly to S3 (auto-detects bucket from .env.local)
python scripts/wxcc-simulator/seed_simulator.py --tasks 20

# Seed with explicit bucket
python scripts/wxcc-simulator/seed_simulator.py --bucket nexus-ai-dev-wxcc-simulator --tasks 20

# Upload local sample recordings to S3 (one-time setup for Docker)
python scripts/wxcc-simulator/seed_simulator.py --upload-samples --bucket nexus-ai-dev-wxcc-simulator

CLI Options Reference¶

Option	Type	Default	Description
`--api`	URL	--	Seed via API (provide gateway URL)
`--tasks`	int	10	Number of tasks to create
`--days`	int	7	Spread tasks over this many days
`--no-recordings`	flag	off	Skip recording creation
`--org-id`	string	`sim-org-001`	Organization ID
`--reset`	flag	off	Reset simulator before seeding
`--now`	flag	off	Use current timestamp for all tasks
`--bucket`	string	auto-detected	S3 bucket name
`--prefix`	string	`wxcc-simulator`	S3 prefix
`--region`	string	`ap-southeast-1`	AWS region
`--upload-samples`	flag	off	Upload all local recordings to S3 `sample-recordings/` prefix
`--upload-recording`	path	--	Upload a single recording file
`--status`	flag	off	Show simulator status and exit

Bucket Auto-Detection¶

When --bucket is not specified, the script auto-detects the bucket name using:

WXCC_SIMULATOR_BUCKET environment variable
Constructed from CAPABILITY_NAME + ENVIRONMENT: {capability}-{env}-wxcc-simulator
Values loaded from .env.local in the project root

API Reference¶

All endpoints are under /api/v1/simulator.

WXCC-Compatible Endpoints¶

These endpoints match the Webex CC API contract, allowing the existing nexus-ai code to work unchanged.

Method	Endpoint	Description
GET	`/tasks`	List tasks (supports `from`, `to`, `orgId`, `channelType`, `pageSize` query params)
POST	`/captures/query`	Get recordings for a list of task IDs (body: `{"taskIds": [...]}`)
GET	`/recordings/{id}`	Stream recording audio (returns audio bytes)
GET	`/recordings/{id}/url`	Get a presigned S3 URL for direct download

Admin Endpoints¶

Method	Endpoint	Description
GET	`/status`	Simulator status (enabled, org, bucket, counts)
GET	`/admin/tasks`	List all tasks with summary info
POST	`/tasks`	Create a single task
PUT	`/tasks/{id}`	Update a task
DELETE	`/tasks/{id}`	Delete a task and its recordings
POST	`/tasks/{id}/recordings`	Upload a recording for a task
POST	`/seed`	Seed sample data
POST	`/reset`	Reset all data
GET	`/sample-recordings`	List sample recordings
POST	`/sample-recordings`	Upload a sample recording (multipart form)
DELETE	`/sample-recordings/{filename}`	Delete a sample recording
GET	`/health`	Health check

Config Endpoints¶

Method	Endpoint	Description
GET	`/api/v1/config/wxcc-mode`	Get current WXCC mode (`simulator` or `real`)

Example: Seed via API¶

curl -X POST http://localhost:8000/api/v1/simulator/seed \
  -H "Content-Type: application/json" \
  -d '{
    "num_tasks": 10,
    "include_recordings": true,
    "days_back": 7,
    "use_current_time": false
  }'

Example: Get Simulator Status¶

curl http://localhost:8000/api/v1/simulator/status

Response:

{
  "enabled": true,
  "org_id": "sim-org-001",
  "bucket": "nexus-ai-dev-wxcc-simulator",
  "prefix": "wxcc-simulator",
  "task_count": 10,
  "recording_count": 10,
  "last_updated": "2026-03-15T08:30:00Z"
}

Configuration Reference¶

Environment Variables¶

Variable	Default	Description
`WXCC_SIMULATOR_ENABLED`	`true`	Enable the WXCC simulator
`WXCC_SIMULATOR_BUCKET`	`nexus-ai-{env}-wxcc-simulator`	S3 bucket for simulator data
`WXCC_SIMULATOR_PREFIX`	`wxcc-simulator`	S3 key prefix
`WXCC_SIMULATOR_BASE_URL`	`http://localhost:8000`	Base URL used in recording file paths
`WXCC_SIM_ORG_ID`	`sim-org-001`	Simulated organization ID
`WXCC_SIM_TOKEN`	`test-token-12345`	Bearer token for simulator authentication

System Settings (UI)¶

The WXCC Simulator settings are also available in the application Settings page under System > WXCC Simulator. This provides an admin-friendly UI for editing the SSM parameters:

Setting	Type	Default	Description
Enabled	Toggle	on	Enable WXCC simulator mode
Bucket	Text	`nexus-ai-{env}-wxcc-simulator`	S3 bucket for simulator data
Prefix	Text	`wxcc-simulator`	S3 prefix for simulator data
Org Id	Text	`sim-org-001`	Simulated organization ID

Changes are persisted to AWS SSM Parameter Store and take effect immediately. Use Save Changes to apply or Reset to revert to defaults.

AWS SSM Parameters¶

Parameter Path	Description
`/nexus-ai/{env}/wxcc/enabled`	`true`/`false` -- master enable flag
`/nexus-ai/{env}/wxcc/bucket`	S3 bucket name
`/nexus-ai/{env}/wxcc/prefix`	S3 prefix
`/nexus-ai/{env}/wxcc/org-id`	Organization ID

Per-Journey Configuration¶

Each journey in Journey Studio can specify its own WXCC mode:

Mode	Behavior
`simulator`	Always use the WXCC simulator for this journey
`real`	Always use the real Webex CC API for this journey
`inherit_global`	Use whatever mode is set globally (default)

This is configured in the Create Journey dialog or journey settings via the wxccMode field.

Memory Safety¶

The simulator implements bounded caching to prevent memory issues in production:

Limit	Value	Purpose
Max sample cache size	50 MB	LRU cache for sample recording bytes
Max sample files cached	20	Maximum items in sample cache
Max tasks in data cache	10,000	Upper bound on cached task records
Data cache TTL	60 seconds	How long before S3 data is re-fetched

Troubleshooting¶

Simulator shows "Enabled" but no tasks appear¶

Check that seeding has been performed (click Seed Data or run the seed script).
Verify the S3 bucket exists and is accessible. Check the bucket name in the status card.
Check backend logs for S3 permission errors.

Ensure the backend server is running and accessible from the browser.
If using a URL override, verify it points to a valid running backend instance.

Recordings play silence or fail to load¶

If using synthetic recordings (no local or S3 sample files), the audio will be a 440 Hz tone with no speech.
Upload real call recordings via the Sample Recordings section, then re-seed.
Check that the S3 bucket allows GetObject operations from the backend IAM role.

Seed script fails with "Could not determine S3 bucket"¶

Set WXCC_SIMULATOR_BUCKET in your environment or .env.local.
Or provide --bucket explicitly on the command line.
Or use --api mode to seed through the running gateway (bucket is resolved server-side).

Tasks created but not picked up by Call Processing¶

Ensure the journey is configured with wxccMode: simulator or that the global mode is set to simulator.
Check that the task timestamps fall within the time range the job is querying. Use --now during seeding for immediate pickup.
Verify the orgId matches between the simulator and the journey configuration.

S3 bucket not found in a new environment¶

The Kubernetes operator automatically provisions the {capability}-{env}-wxcc-simulator bucket. If deploying manually, create the bucket in the correct region and set the environment variable.
